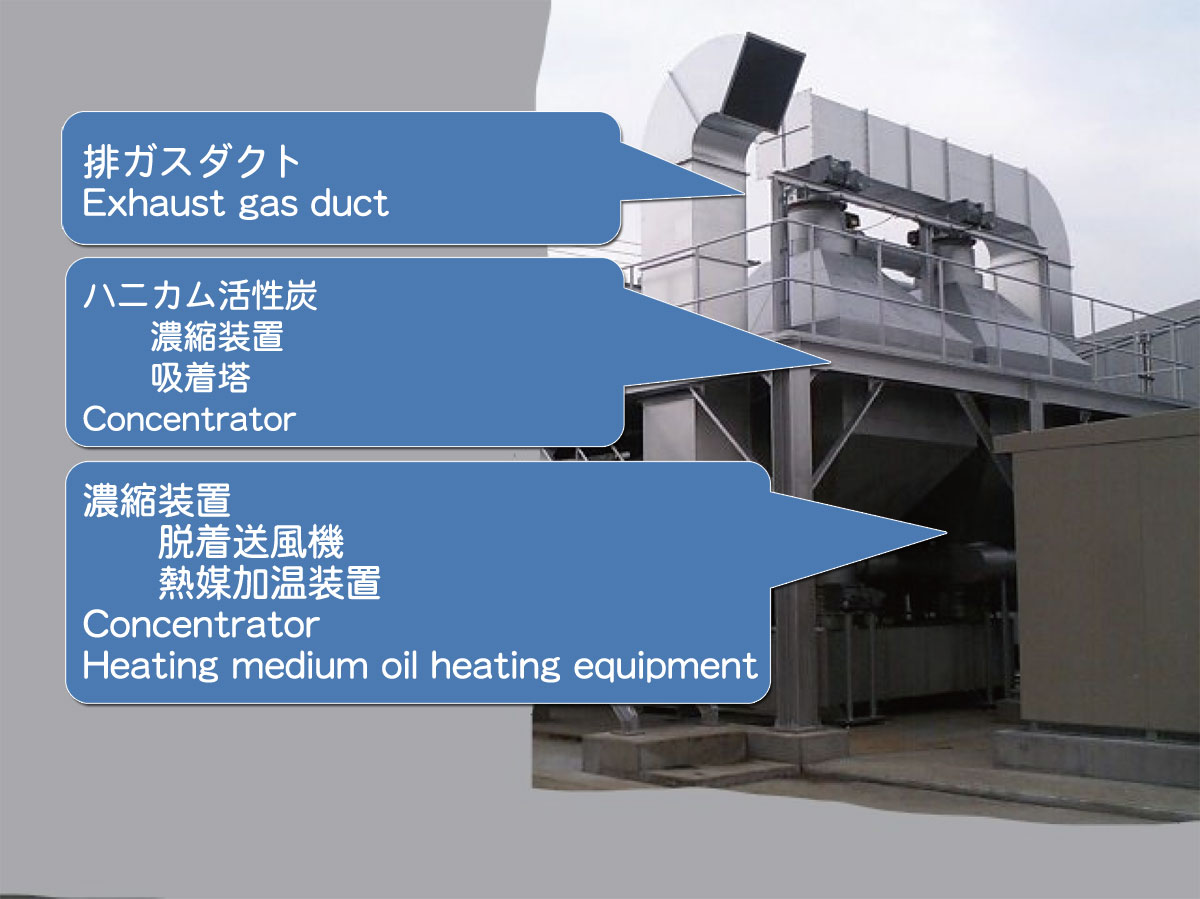

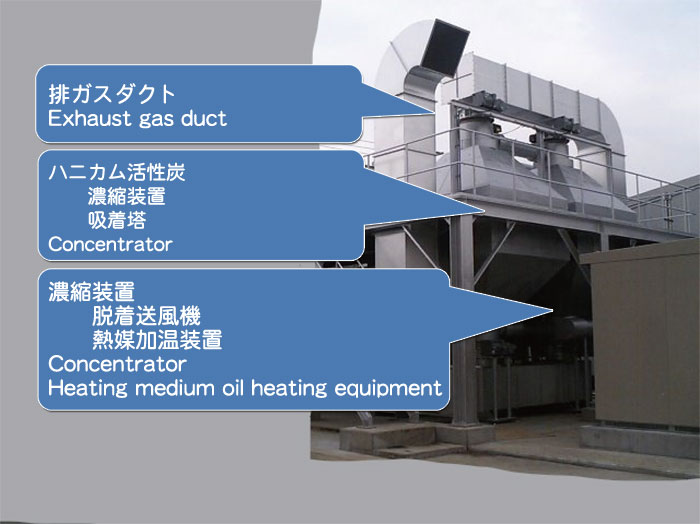

ハニカム活性炭排ガス濃縮装置

ハニカム活性炭排ガス濃縮装置

【装置の特徴】The feature of the equipment

 ・活性炭ハニカムを使用している為

 Because an activated carbon honeycomb is being used.

        どのような有機溶剤でも濃縮可能。

        It's possible to concentrate every kind of organic solvent.


・脱着ガスに、窒素ガスを使用で安全性確保。

 Nitrogen gas is used for attachment and removal gas,safety securement.


・濃縮倍率は、2倍から10倍まで可能。

 The concentration rate is possible from two times to 10 times.


・オプションで、溶剤回収、燃焼が可能。

 Agent collection and burning are possible by an option.

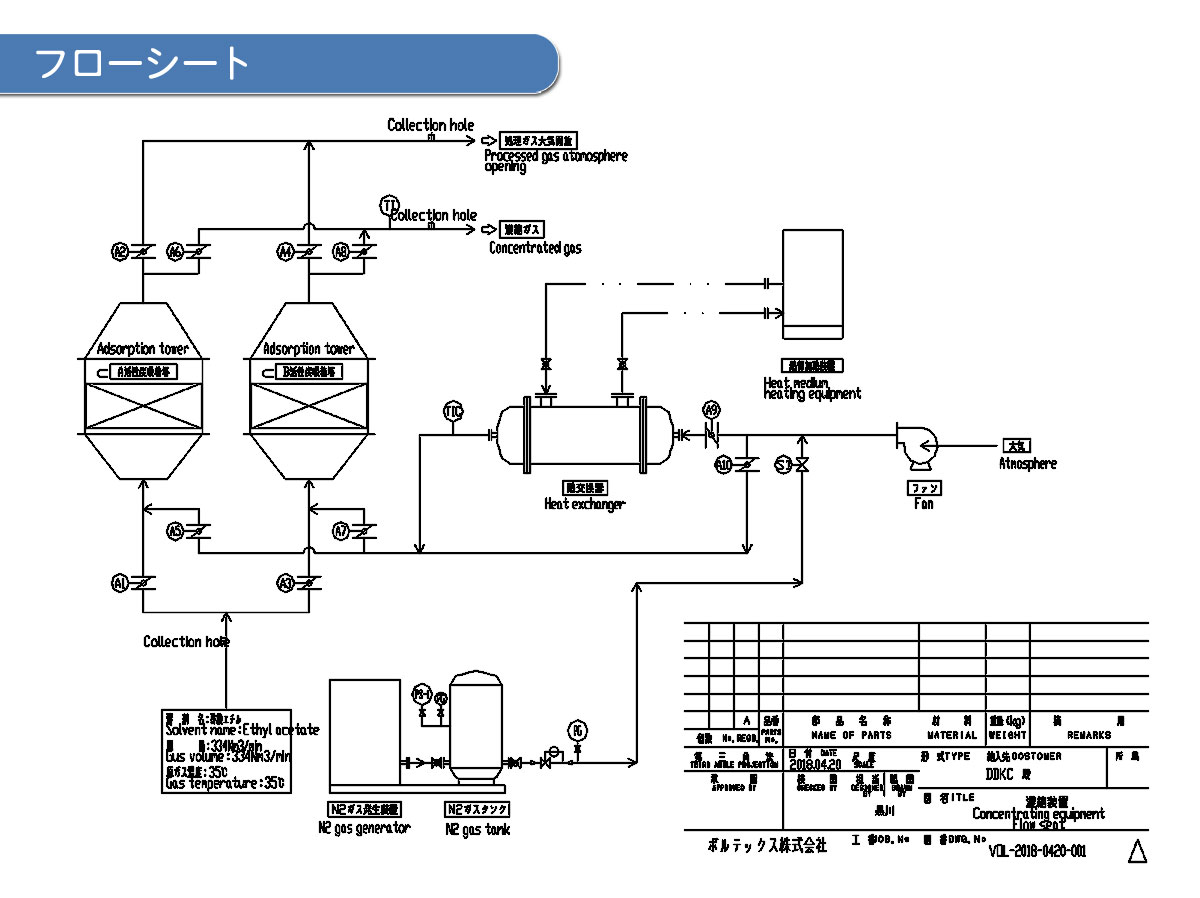

フローシート

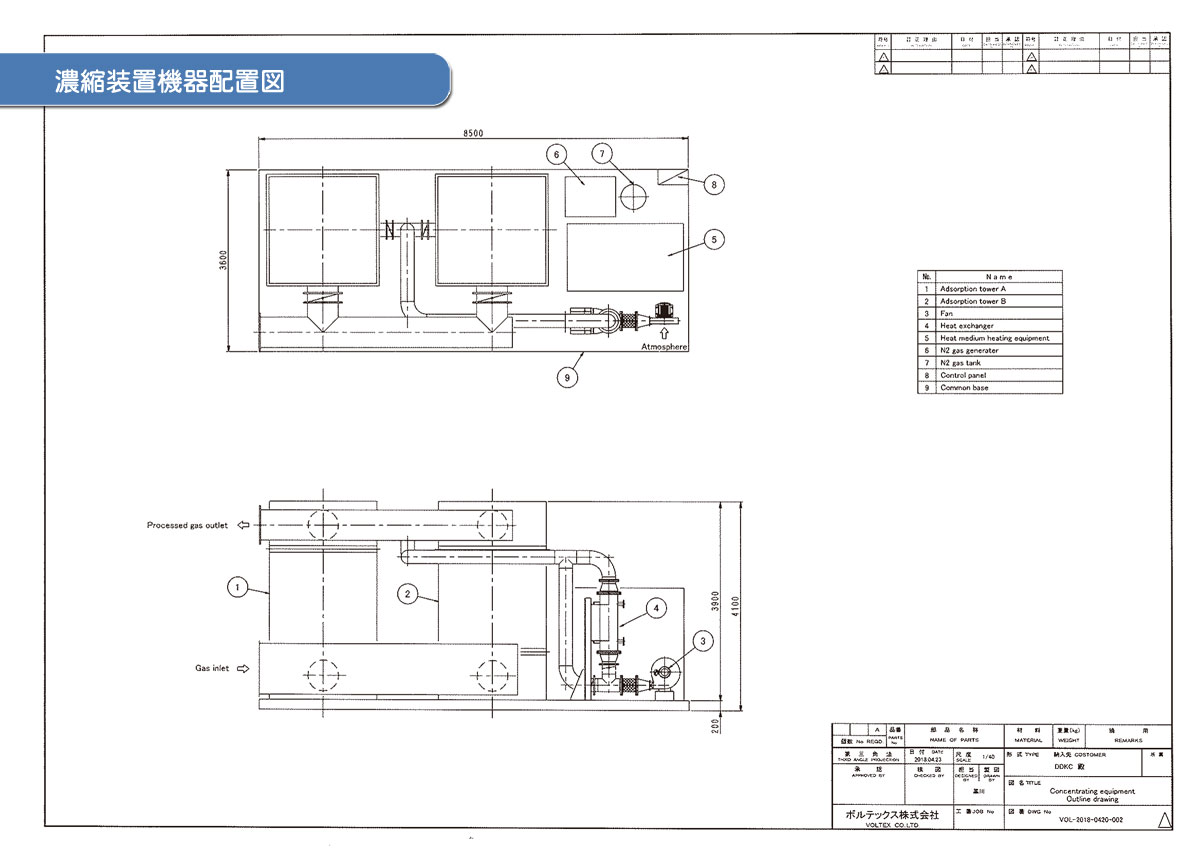

濃縮装置機器配置図

参考仕様(参考规范)

The reference specification

風  量
(空气量)

340m3/min

A capacity

340m3/min

排ガス
(废气)

酢酸エチル
(乙酸乙酯)

An exhaust gas

Ethyl acetate

濃 度
(浓度)

500PPM

Density

500PPM

濃縮風量
(浓缩空气量)

30m3/min

Concentration capacity

30m3/min

濃縮倍率
(浓度比)

11倍
(11次)

concentration rate

11 times

脱着ガス
(解吸气体)

窒素+空気
(氮气+空气)

Attachment and removal gas

Nitrogen + air

外形寸法
(外部尺寸)

3800×8500×4100H

Overall size

3800×8500×4100H

information

 In organic solvent recovery ,it links up with  Environmental Partnership corporation and it tackles the recycling processing of a industrial waste.
